Poo Pit™ Subsoil Shaft

Our sewage maintenance shafts (SMS) are manufactured to suit PVC, PE, Polypropylene or Clay pipelines.

Please find below more information about this product.

DOCUMENTATION DOWNLOAD
Loading...

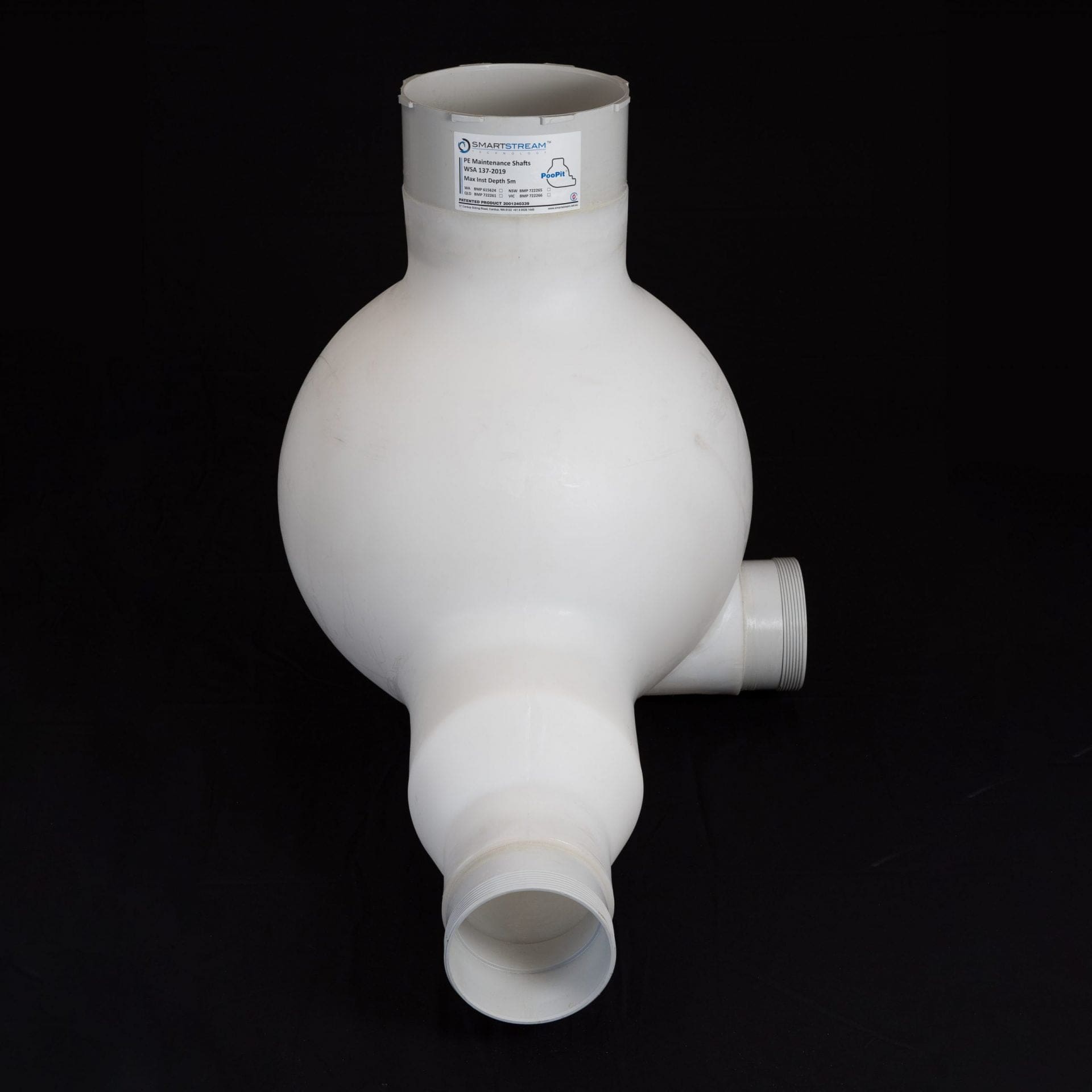

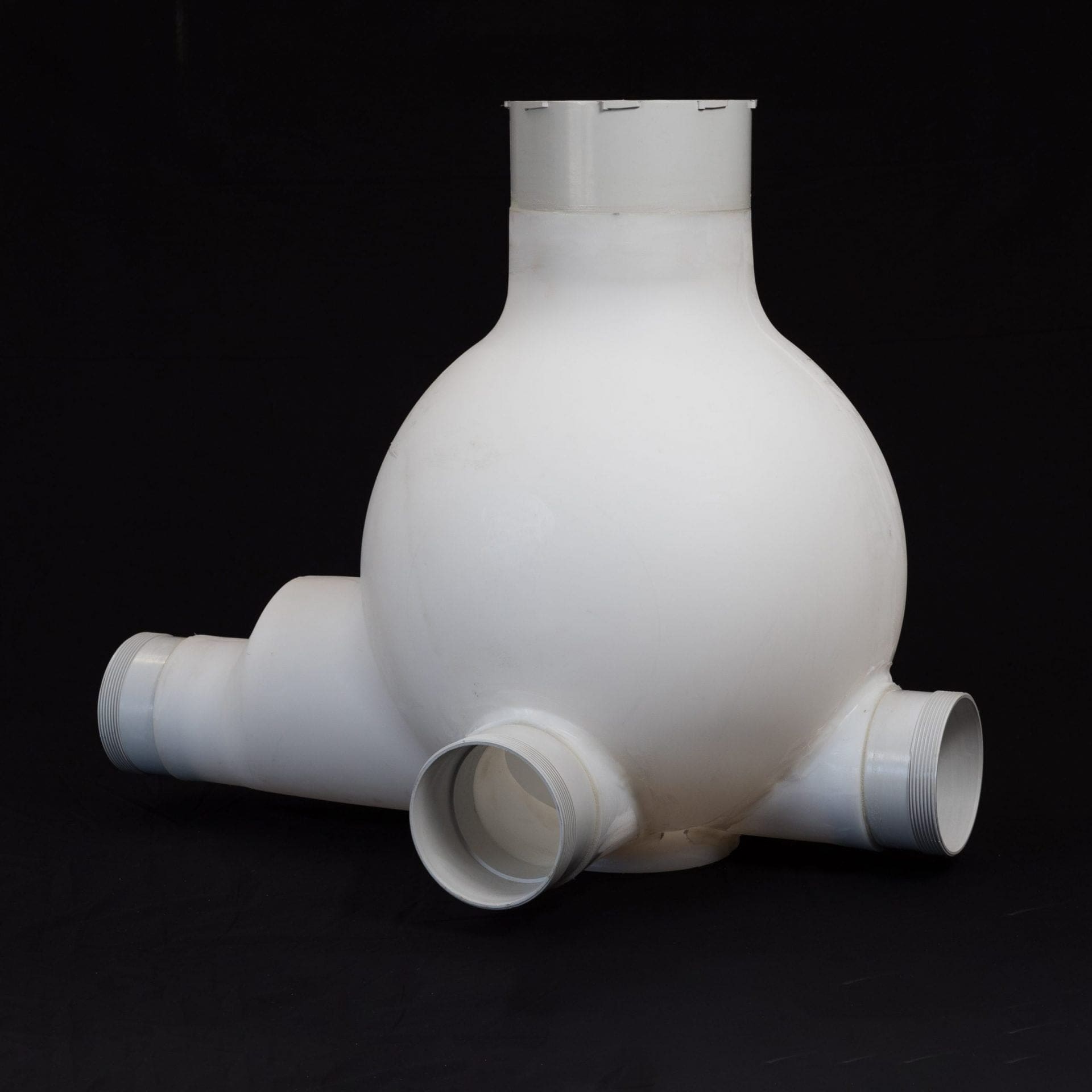

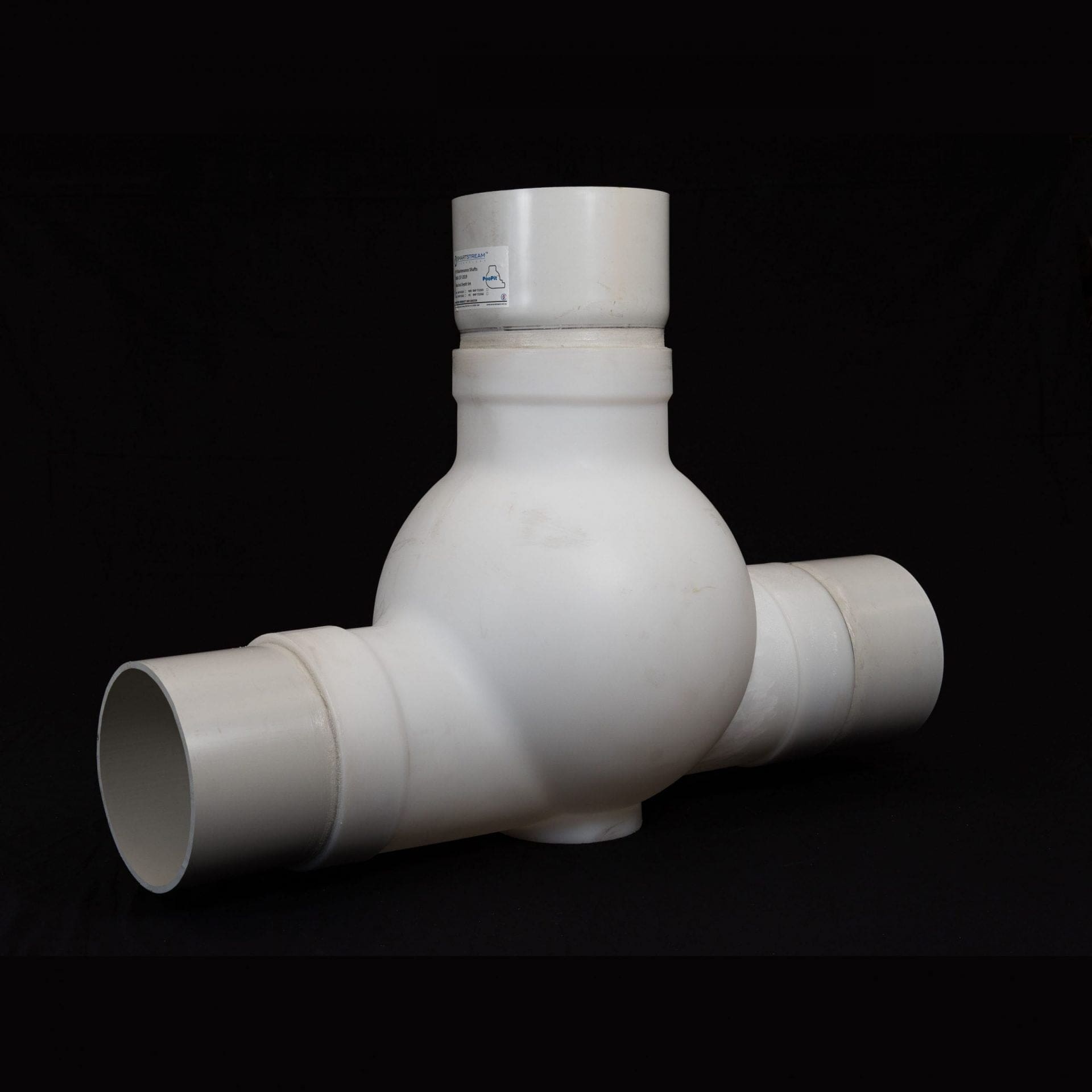

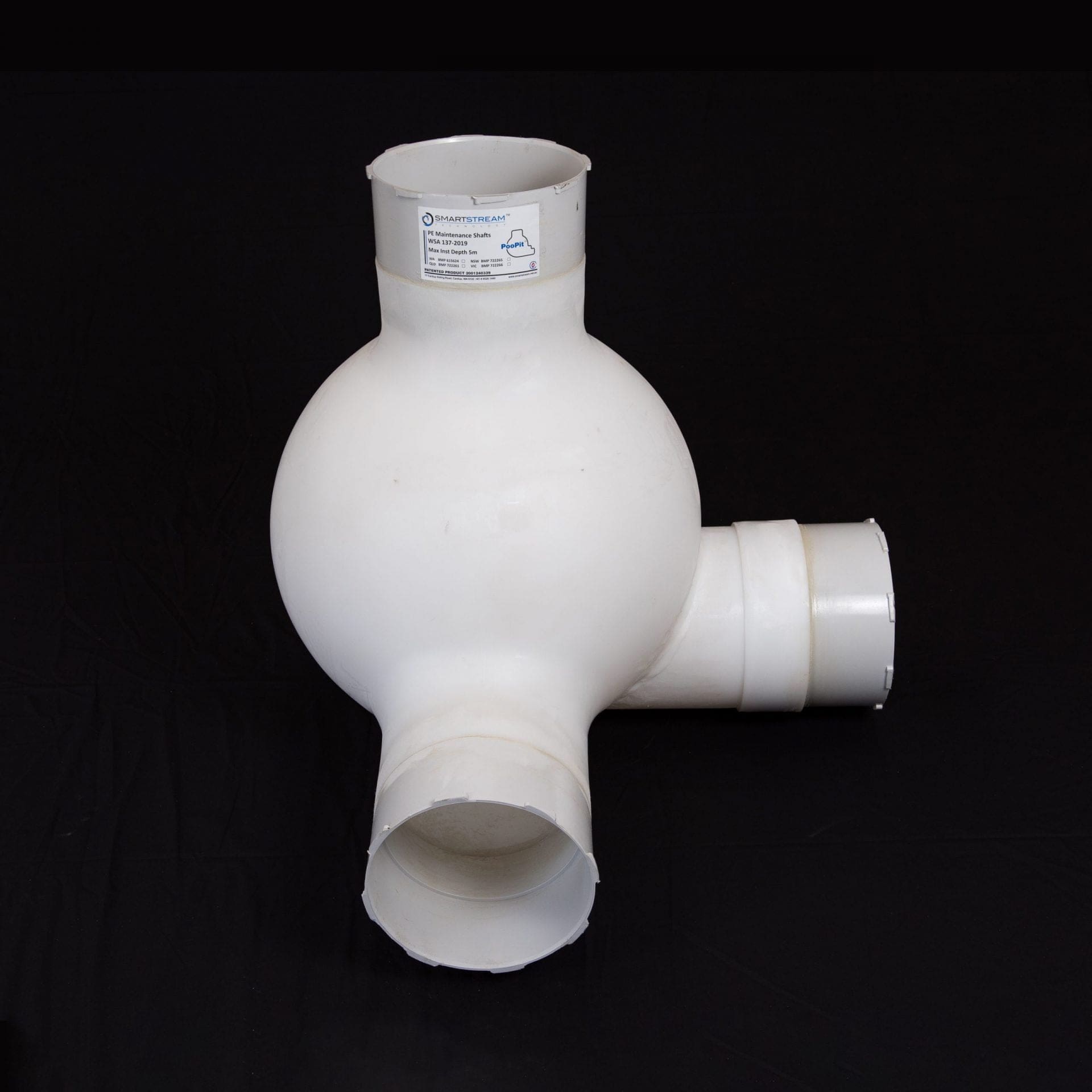

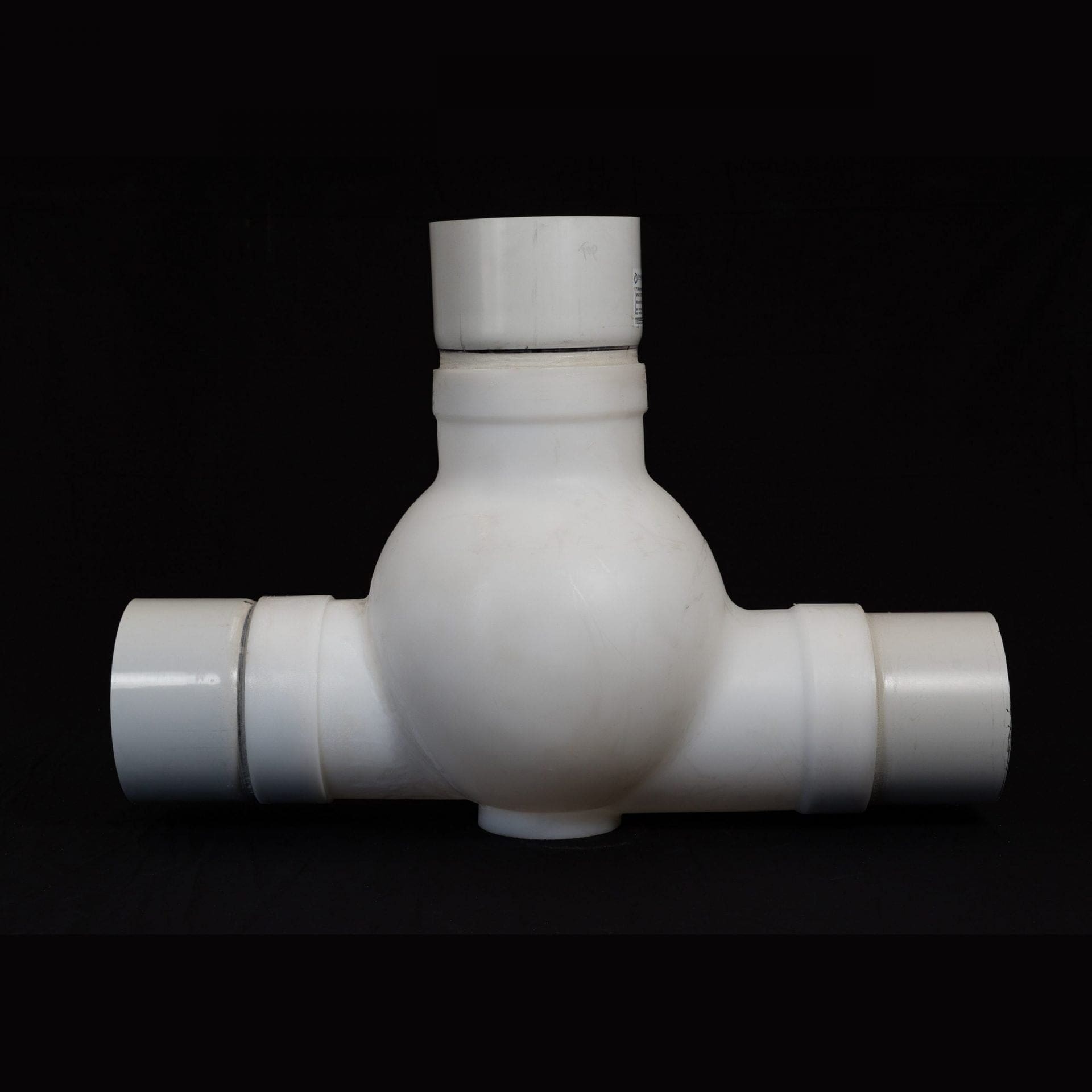

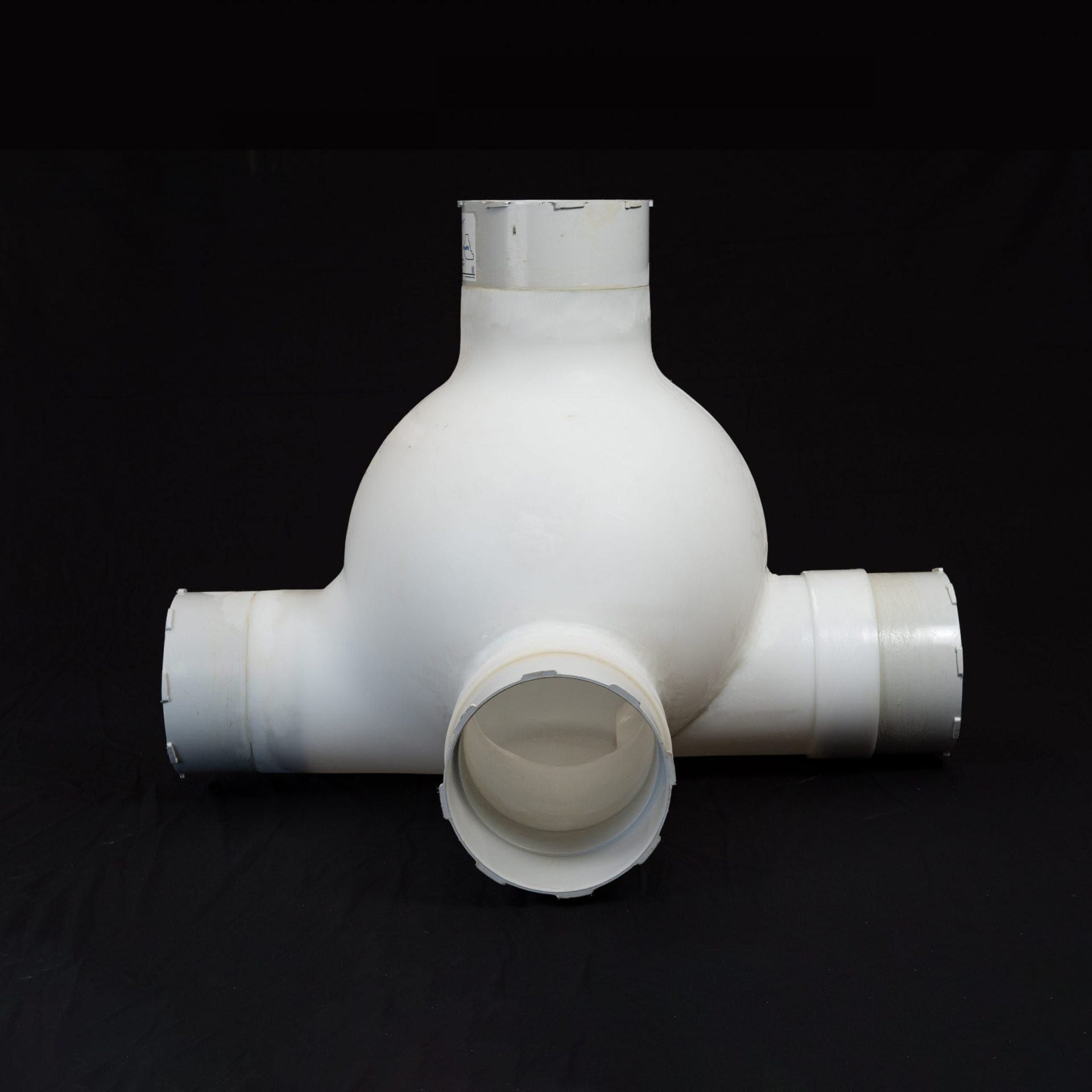

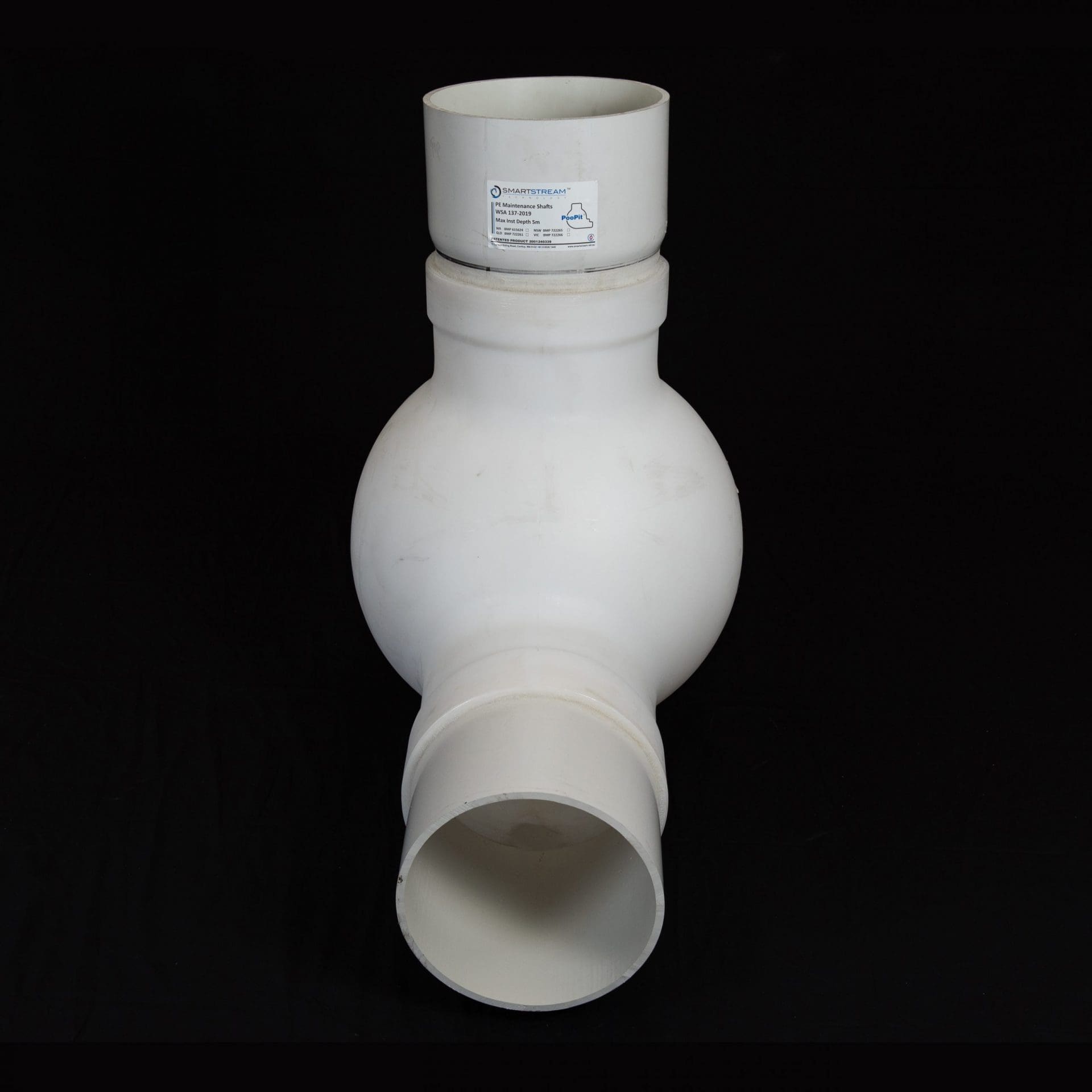

The Poo Pit™ PE maintenance shaft is an Australian designed and manufactured sewer maintenance shaft for use in sewer, stormwater or subsoil drainage. Our sewage maintenance shafts (SMS) are manufactured to suit PVC, PE, Polypropylene or Clay pipelines.

The Poo Pit™ achieves any angle between 45 and 315 degrees on 150mm pipelines and between 65 and 295 degr on 225mm pipelines. Larger pipe sizes 300mm and 375mm also available.

Grade and invert drops can be achieved without the need for additional fittings such as deflection and kicker bends.

The Poo Pit™ sewer maintenance shaft (SMS) can be supplied with up to 3 inlets and also used as a terminal maintenance shaft. Each of our Poo Pit™ maintenance shafts are 100% watertight, with all products individually tested before being delivered to site.

The Poo Pit™ sewer maintenance shaft (SMS) is this year, in 2021 celebrating over 120,000 installations across Australia & New Zealand.

POO PIT™ Inspection Monitoring & Maintenance Equipment

The Poo Pit™ maintenance shaft eliminates the need for confined space entry (CSE). Confined space entry is extremely hazardous and is considered a high risk activity in occupational health and safety regulations in Australia. The Poo Pit™ maintenance shaft enables all inspection, monitoring and maintenance to be undertaken safely from the surface using CCTV cameras, jet rodding equipment and other various other simple tools.

The primary items of equipment which have been designed specifically to allow efficient inspection, monitoring and maintenance of the Poo Pit™ are:

  • Plug Insertion Tool
  • Upstream Bar
  • Downstream Bar
  • Compressor Gauge
  • Tiger Tail
  • Mini Camera
  • Universal Pole

The vertical riser shaft is used for access and insertion of equipment into operational units. Combining the ease of at surface inspection monitoring and maintenance together with it’s key characteristics of being corrosion resistant, lightweight, and cost effective.

POO PIT™ Inspection Monitoring & Maintenance Video

Want to see more of our Smartstream product videos? Check out the

Smartstream YouTube channel here

Standards
WSA 137-2019 Issue 3 Water Industry Standard for Maintenance shafts and Chambers and Holes for Sewerage

WMTS 509 – 2018 Polypropylene & Polyethylene Access Chambers and Maintenance Shafts for Plumbing and Drainage

Quality
ISO 9001 : 2015

BSI

BMP 615624

Below you will find further details on the features and benefits of our Smartstream maintenance shafts, in addition to the installation and technical information. If you would like to find out more, simply download the brochure and/or get in touch with us regarding maintenance shafts at solutions@smartstream.net.au

Brochures
Click here to download Poo Pit™ information, inspection, monitoring and maintenance brochure

Features & Benefits

  • Certified to WSA 137 – 2013
  • Water Services of Australia (WSAA) appraised
  • In excess of 120,000 products in service
  • Accommodates any grade and angle
  • No horizontal/vertical alignment adjusting bends needed
  • Available with 225, 300 or 600mm riser
  • Up to 3 inlets possible in each Poo Pit™
  • Accommodates pipes of all material types
  • Suitable for welded connection to Polyethylene pipes
  • Made to suit either solvent weld or rubber ring PVC
  • Multiple pipe material connections possible on the same pit
  • All fittings prefabricated prior to delivery
  • Tested to depths of 7.5m, see local authority for approved depth
  • Half Pit available for shallow installations
  • 100% watertight. Every product tested
  • Lightweight and user friendly
  • Corrosion resistant (internal / external)
  • Reduced transport and handling costs
  • Rapid delivery over traditional materials
  • Improved efficiencies providing cost benefits to the end user
  • UV resistant, state of the art Polyethylene technology
  • No concrete encasement required
  • Eliminates confined space entry
  • Accommodates traditional and the latest inspection methods
  • No variation to design or installation practices required
  • Easy connection of new lines
  • Reduced excavation size
  • No onsite welding or spark testing required

Installation

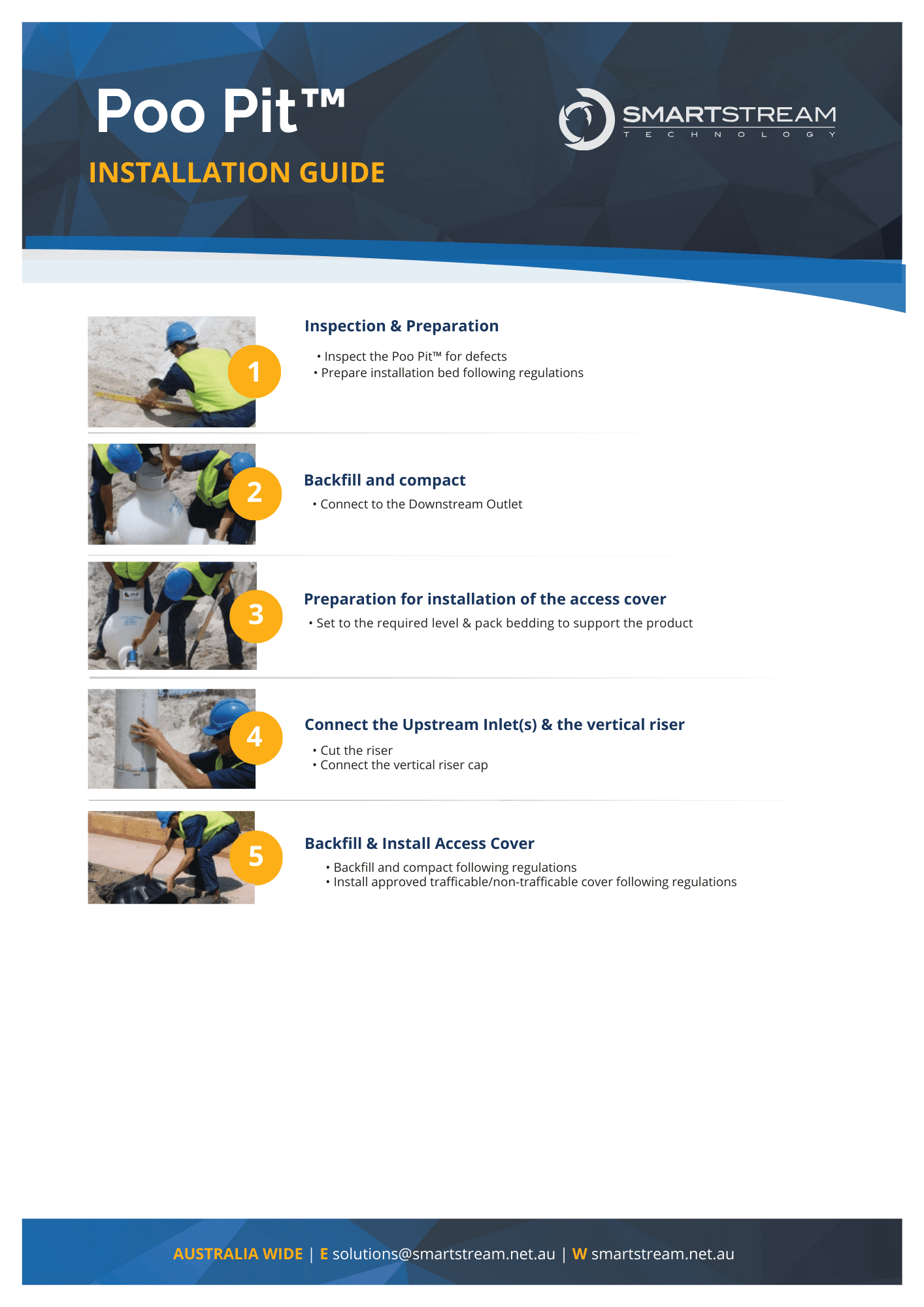

Click here to download the Poo Pit Installation Guide

Technical Information

Click here to download the Smartstream Technology Poo Pit™ Maintenance Shaft Drawing

Click here to download the Smartstream Technology WSA Certificate

Click here to download the Smartstrem Technology Watermark Certificate
